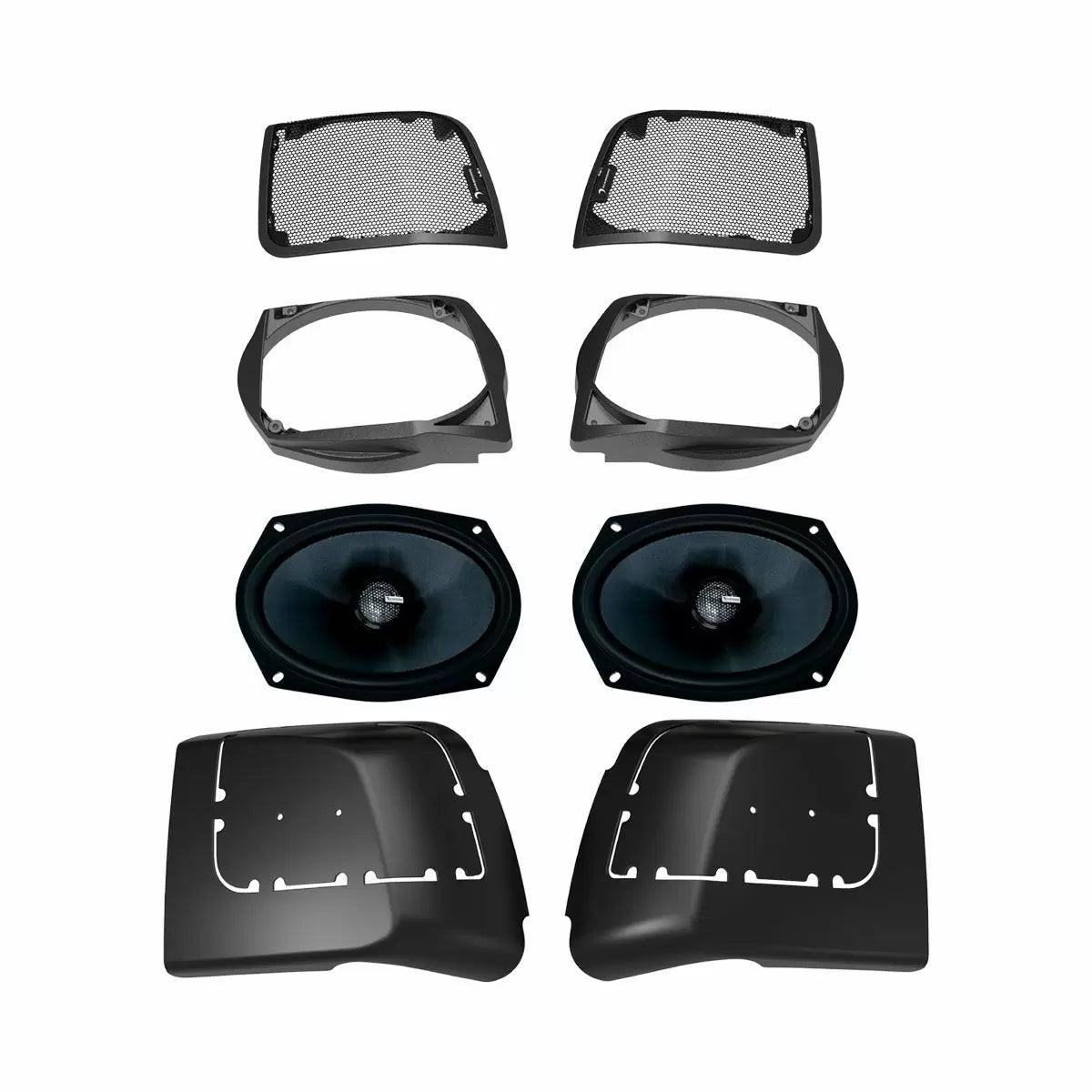

DIAMOND AUDIO 14+ Harley Davidson Cut in Lid Kit with MS69CX
DIAMOND AUDIO 14+ Harley Davidson Cut in Lid Kit with MS69CX
SKU:MSMS692LK
Couldn't load pickup availability
Features:
- Harley Davidson ® 14+ Cit in Lid Kit

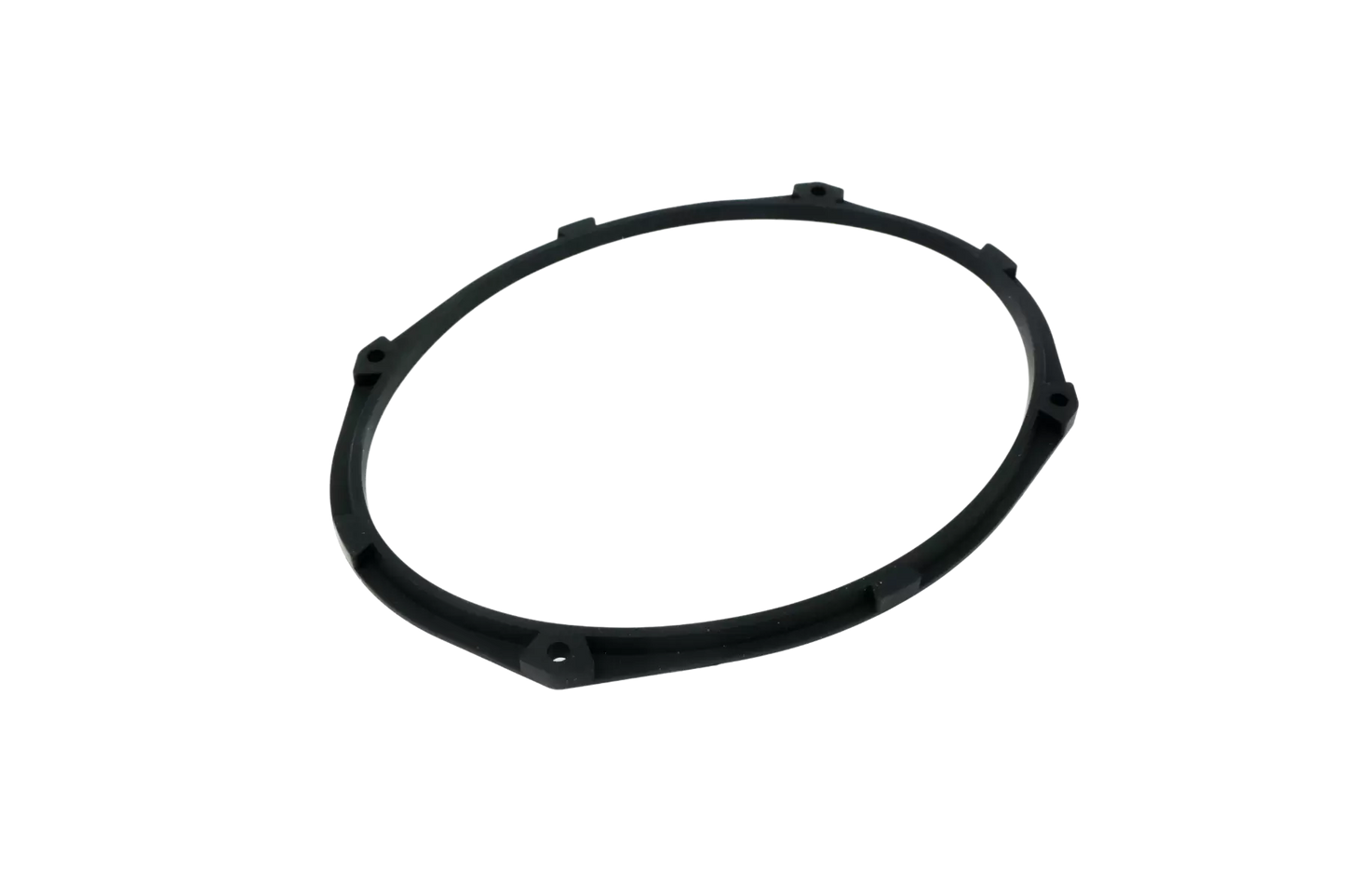

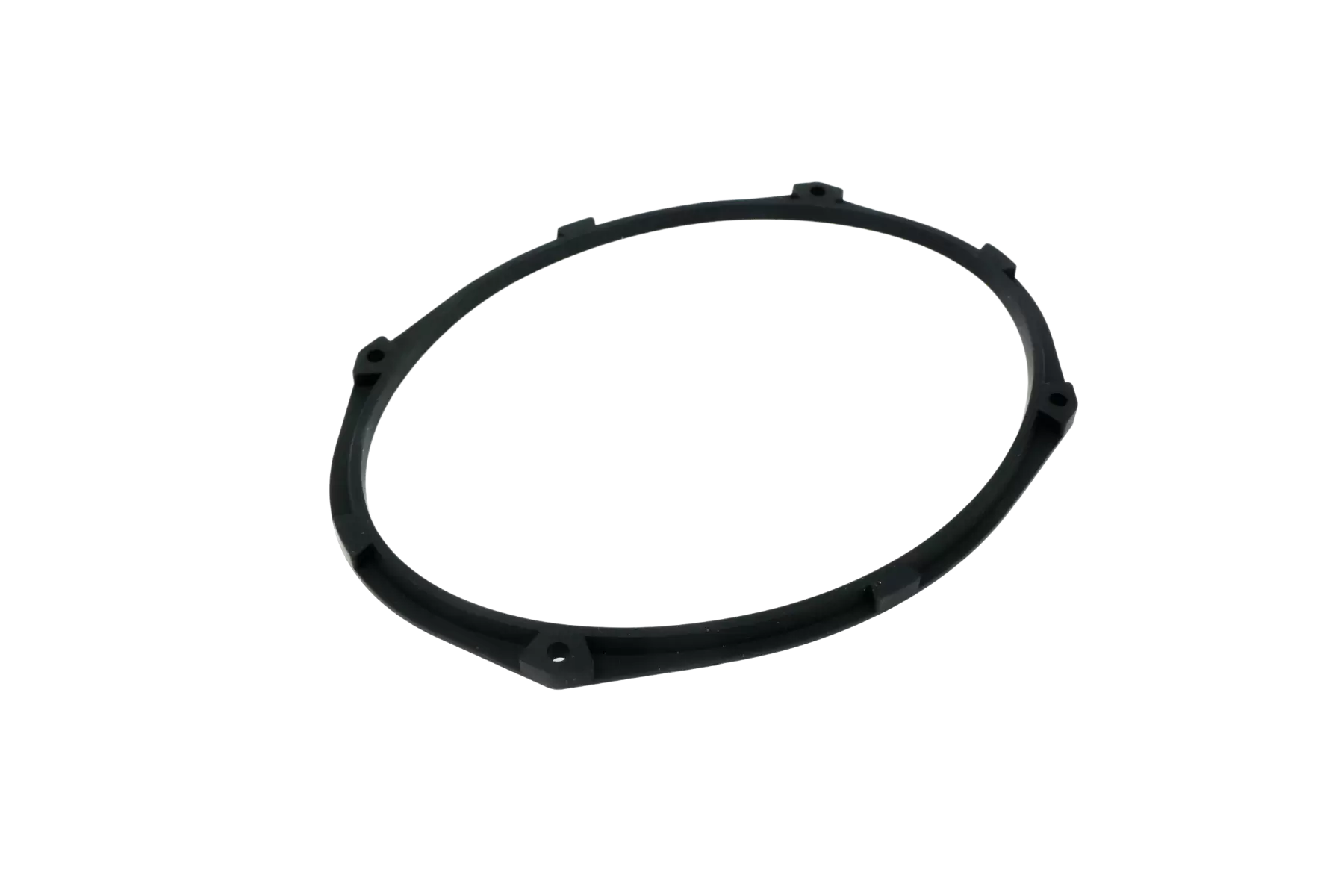

- Includes .5” 6” x 9” Spacer Ring
- Includes MS69CX Motor Sports 6” x 9” Marine Grade Speaker

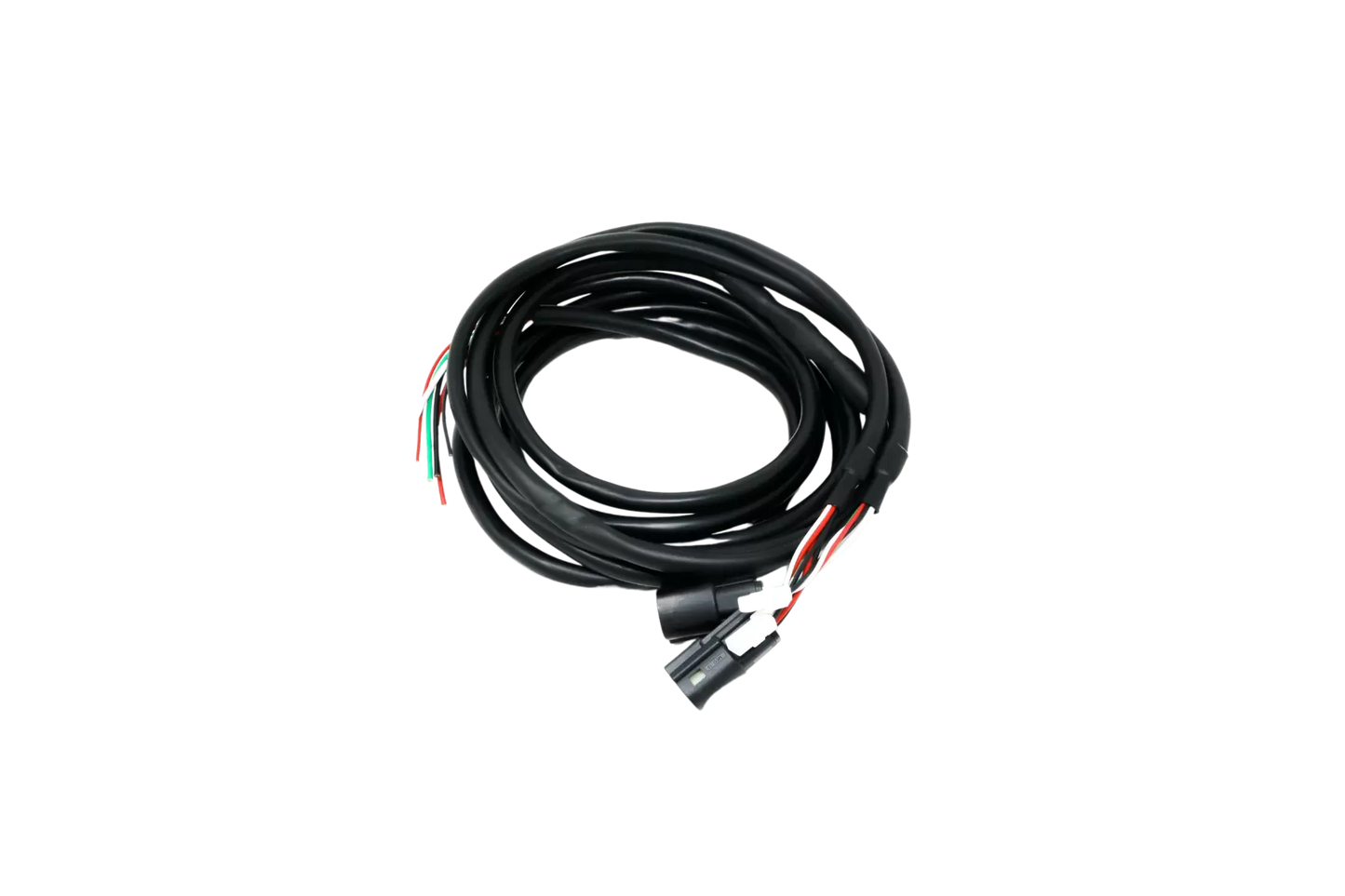

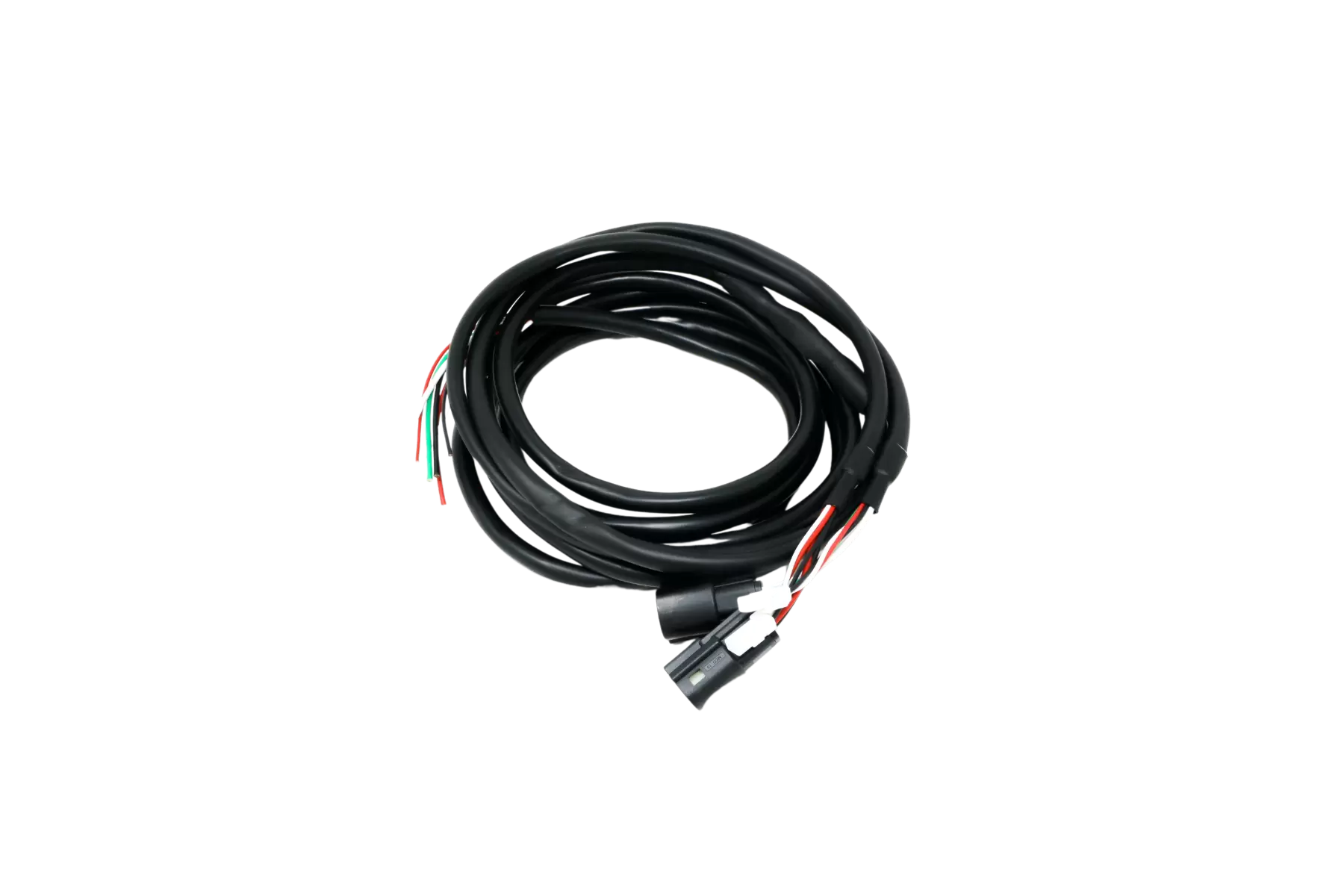

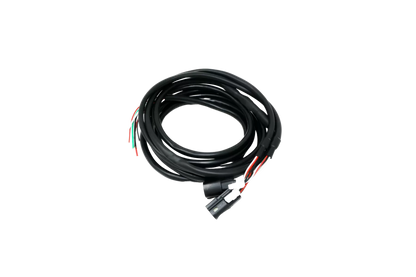

- Includes Plug-n-Play Wire Harness W/ DLED Wiring
- 6 X 9 2-Way High Power MotorSport CoaXSub
- Manufactured to IPx65 Marine Grade Compliant Specifications
- 1" High Output Titanium Dome Tweeter
- UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
- 12dB Bessel Crossover Network
- Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
- T-Yoke Back Plate Drilled For 35% More Cooling,Increased Power Handling
- High-Temperature Cast Aluminum Basket
| Speaker Size | 6 X 9 |
|---|---|
| Description | 2014+ Harley Davidson Cut in Lid Kit with MS69CX - MSMS694LK |
| Nominal Impedance (ohms) | 4Ω |
| RMS Power Rating | 125W |
| Max Power Rating | 500W |
| Frequency Response | 45-23kHz |
| Voice Coil Diameter (inch/mm) | 1.4 (35.5) |
| Power Handling (RMS/Peak) | 125W/500W |
| Types | 2-way |
| Qts | 0.783 |
| Fs-Free Air Resonance (Hz) | 46Hz |
| Vas (Liter) | 0.159 (4.5) |
| Xmax - Inch(mm) | 0.16 (4) |
| Sensitivity (1W/1M) | 90.5dB |
| Sensitivity (2.83V/1M) | 93.5dB |
| Mounting Diameter (inch/mm) | 8.875″ (225.5mm) x 6.125″ (155.6mm) |
| Mounting Depth | 3.875″ (98.425mm) |
